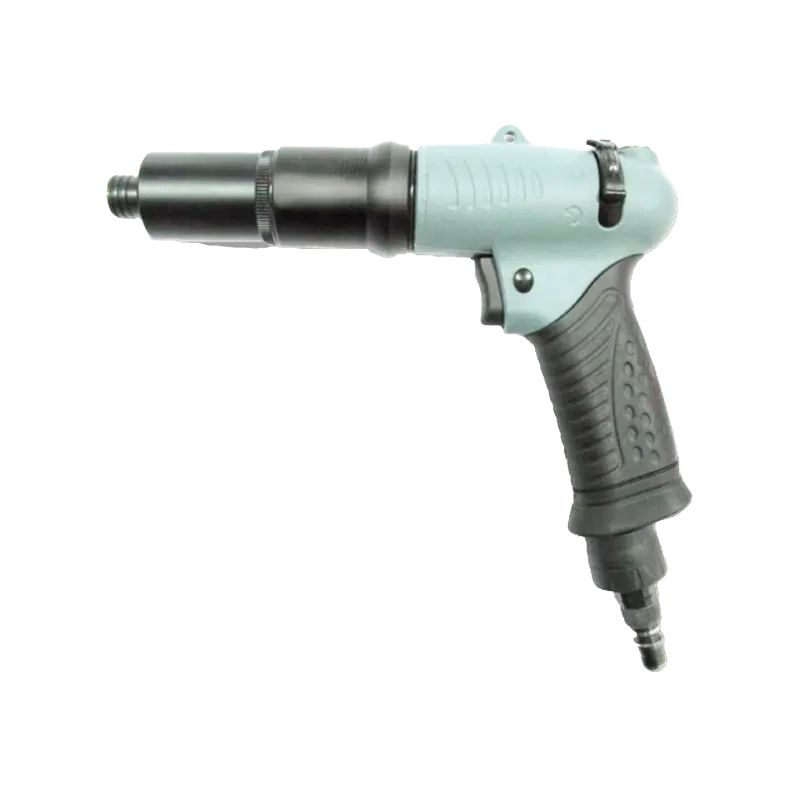

Air Screwdriver High Torque Type
Air Screwdriver High Torque Type
- Air Pressure(kg/cm²): 6 / Standard Deviation(%): ±3
Size
| Item No. | Speed (R.P.M) |
Weight (g) |
Length (mm) |
Diameter (mm) |
Noise (±2dBA) |
Air Consumption (m³/min) |
Torque Range (kgf-cm) |
Min.Air Hose Bore (mm) |
Machine Screw | Tapping Screw |
| AF65-510BBP | 2200 | 625 | 190 | 34 | 74 | 0.28 | 5-30 | 5 | M2.8-M5 | M2.2-M4 |
| AF65-520BBP | 1600 | 625 | 190 | 34 | 74 | 0.28 | 5-45 | 5 | M2.8-M6 | M2.2-M4.7 |
| AF65-530BBP | 1000 | 625 | 190 | 34 | 74 | 0.28 | 8-60 | 5 | M3.3-M6.3 | M2.7-M5 |
| AF65-540BBP | 800 | 625 | 190 | 34 | 74 | 0.28 | 10-70 | 5 | M3.6-M6.8 | M2.8-M5.4 |
| AF65-550BBP | 550 | 625 | 220 | 34 | 74 | 0.3 | 10-80 | 5 | M3.6-M6.9 | M2.8-M5.8 |
| AF65-610BBP | 2200 | 965 | 220 | 42 | 78 | 0.55 | 10-80 | 8 | M3.6-M6.9 | M2.8-M5.8 |
| AF65-620BBP | 1200 | 965 | 220 | 42 | 78 | 0.55 | 20-110 | 8 | M4.4-M7.8 | M3.6-M6.1 |
| AF65-710BBP | 770 | 1100 | 220 | 42 | 78 | 0.55 | 50-180 | 8 | M6-M9.3 | M4.7-M7.2 |
| AF65-720BBP | 430 | 1100 | 220 | 42 | 78 | 0.55 | 30-250 | 8 | M5-M10 | M4-M8 |
| AF65-721BBP | 300 | 1100 | 220 | 42 | 78 | 0.55 | 70-350 | 8 | M6-M11.8 | M4.7-M9.7 |
| AF65-730BBP | 300 | 1100 | 220 | 42 | 78 | 0.55 | 50-400 | 8 | M6.8-M11.7 | M5.3-M9.5 |
